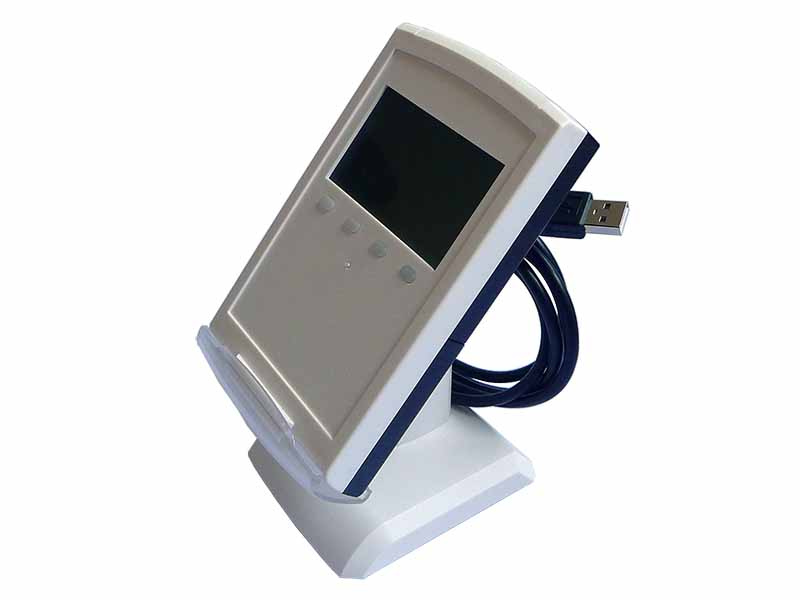

JINMUYU MR800UCV (USB RC531 VERTICAL) RFID READER

Supplier : Jinmuyu Electronics Co., Ltd (China)

Electrical and electronic components

Partagez ce produit sur vos réseaux

MR800 series desktop contactless IC card reader / writer is based on NXP series RF chip with high performance ARM7 MCU. The communication is according to USB PC / SC standard. The reader fully supports the IC card according to ISO14443 and ISO15693 standard, especially completely supports ISO14443-4 contactless CPU card. The reader builds in 2 SAM slots, and fully supports SAM according to ISO7816. It has 128 * 64 pixel LCD displayer, and more firmware providing high speed card speed. The RF interface and protocol is with EMV2010 LEVEL 1 certification ability. Technical parameters • PCD: NXP MF RC531, CL RC632 • Working frequency: 13.56MHz • Standard RF: ISO14443A, ISO14443B, ISO15693 • Operating distance: 100mm (MIFARE One, typical) • SAM card slot: 2 slots, ISO7816 (T = 0 & T = 1, PPS terms, Max 230400bps) • Display: 4 LED + LCD (128 * 64 pixel) • Buzzer: Build in • Interface: USB PC / SC compatible • Power supply: DC5V ± 10% • Power consumption :
